Description

Technical Parameters

HEX dumbbells give a wide range of options ranging all the way from 1kg to 60kg. Made of durable steel and coated with high-quality rubber. Knurled handles with varying length and thickness depending on weight. Hexagon shaped dumbbells won't roll away during training.

*The (REACH Regulation) - (EC) No. 1907/2006 is an EU chemicals regulation that came into force on June 1, 2007. REACH stands for Registration, Evaluation, Authorisation, and Restriction of Chemicals.

Product Parameters

product-1366-570

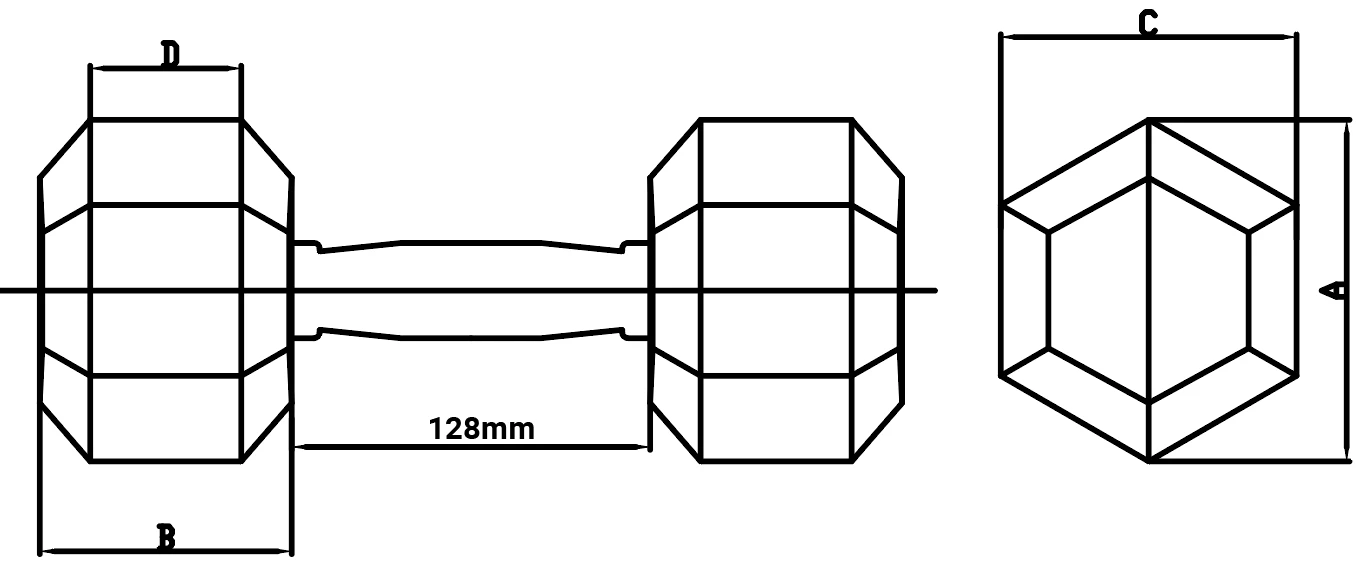

Dimensions for Hex Rubber Dumbbells in KGS 1KG to 60kg

Weight	A	B	C	D	Weight	A	B	C	D
in KGS	(mm)	(mm)	(mm)	(mm)	in KGS	(mm)	(mm)	(mm)	(mm)
1 kg	69	50	59.8	30	22.5 kg	175	120.5	151.7	66.6
2 kg	78	58	67.5	36.8	25 kg	181	125.6	156.8	68.6
2.5 kg	90	58	78	36	27.5 kg	187	127.7	162	70.7
3 kg	90	58	78	36	30 kg	192	130.7	166.4	72.7
4 kg	103	72	89.3	45	32.5 kg	197	197	170.74	74.8
5 kg	109	78	94.4	46	32.5 kg	200	200	173.2	77
6 kg	113	81	97.8	48	35 kg	205	205	177.7	80
7 kg	116	84	100.6	50	37.5 kg	209	209	181	83
7.5 kg	124	85	107.4	49	40 kg	216	216	187.2	90
8 kg	124	85	107.4	49	42.5 kg	218	218	188.8	93
9 kg	126	90	109.3	52	45 kg	220	220	190.5	95
10 kg	137	95	118.8	55.2	47.5 kg	222	222	192.4	97
12.5 kg	147	100.3	127.3	57.3	50 kg	224	224	194	98
15 kg	155	105.4	134.4	59.4	55 kg	226	226	196	99
17.5 kg	166	110.5	143.8	61.5	60 kg	236	164.3	204.2	100
20 kg	168.1	117	145.6	63

product-1366-570

Dimensions for Hex Rubber Dumbbells in KGS 5lb to 125lb

Weight in LBS	A (mm)	B (mm)	C (mm)	D (mm)	Weight in LBS	A (mm)	B (mm)	C (mm)	D (mm)
3LB	69	50	59.8	30	60LB	187	127.7	162	70.7
5LB	78	58	67.5	36.8	65LB	192	130.7	166.4	72.7
8LB	94	65	81.4	42	70LB	197	197	170.74	74.8
10LB	103	72	89.3	45	75LB	200	200	173.2	77
12LB	109	78	94.4	46	80LB	205	205	177.7	80
15LB	116	84	100.6	50	85LB	209	209	181	83
20LB	126	90	109.3	52	90LB	216	216	187.2	90
25LB	137	95	118.8	55.2	95LB	218	218	188.8	93
30LB	147	100.3	127.3	57.3	100LB	220	220	190.5	95
35LB	155	105.4	134.4	59.4	105LB	222	222	192.4	97
40LB	166	110.5	143.8	61.5	110LB	224	224	194	98
45LB	168.1	117	145.6	63	115LB	226	226	196	99
50LB	175	120.5	151.7	66.6	120LB	228	228	198	100
55LB	181	125.6	156.8	68.6	125LB	230	230	199.5	100
